ARCCAPTAIN CUT65 MP Review: Honest Pros & Cons for CNC

I was three sheets deep into a project welding expanded metal for a custom enclosure, and the pilot arc on my old plasma cutter kept misfiring every time I hit a crossbar. The arc would sputter, the dross piled up, and I spent more time grinding than cutting. That afternoon, I knew I needed something that could handle mesh without constant resetting. That is how I ended up testing the ARCCAPTAIN CUT65 MP plasma cutter review — a machine built for the kind of work that frustrates conventional torches. I had read the CUT65 MP plasma cutter review and rating on a fabrication forum, but I needed to see if it could actually deliver on expanded metal and gouging without the usual headaches.

Disclosure: Some links in this article are affiliate links. We may earn a commission if you buy through them. This does not influence our findings or recommendations.

What This Thing Is and Is Not

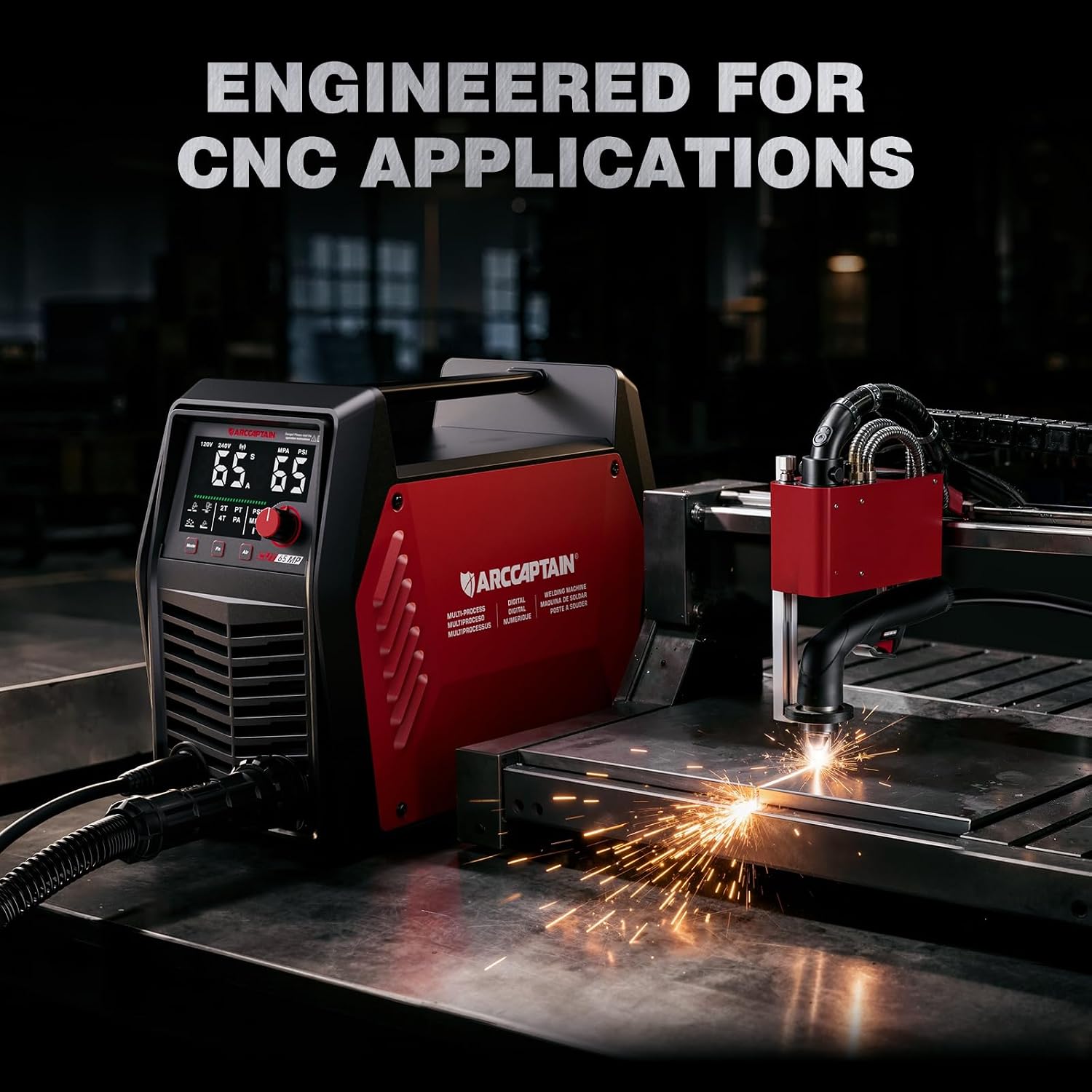

The ARCCAPTAIN CUT65 MP is a 65-amp plasma cutter with a non-HF blowback pilot arc, designed specifically for CNC integration. That last part matters more than most people realize. Unlike the usual high-frequency start systems that flood CNC controller inputs with electromagnetic noise, this machine uses a mechanical blowback start. The result is a clean arc initiation that doesn’t glitch your THC or mess with sensitive stepper drivers.

It is not a handheld-only unit. You can use it manually, but the real value is the ARC OK and THC signal outputs on the rear panel. It is also not a multi-process welder. It cuts, gouges, and removes rust — beyond that, you will need separate equipment. The brand, ARCCAPTAIN, is newer to the plasma market but has been building power tools for a few years. Their support line is based in the US and they offer a 36-month warranty. In the market, this sits in the mid-range tier — not a bargain import, not a top-tier Hypertherm, but a serious competitor for makers who need CNC compatibility without a five-figure price tag.

What You Get When It Arrives

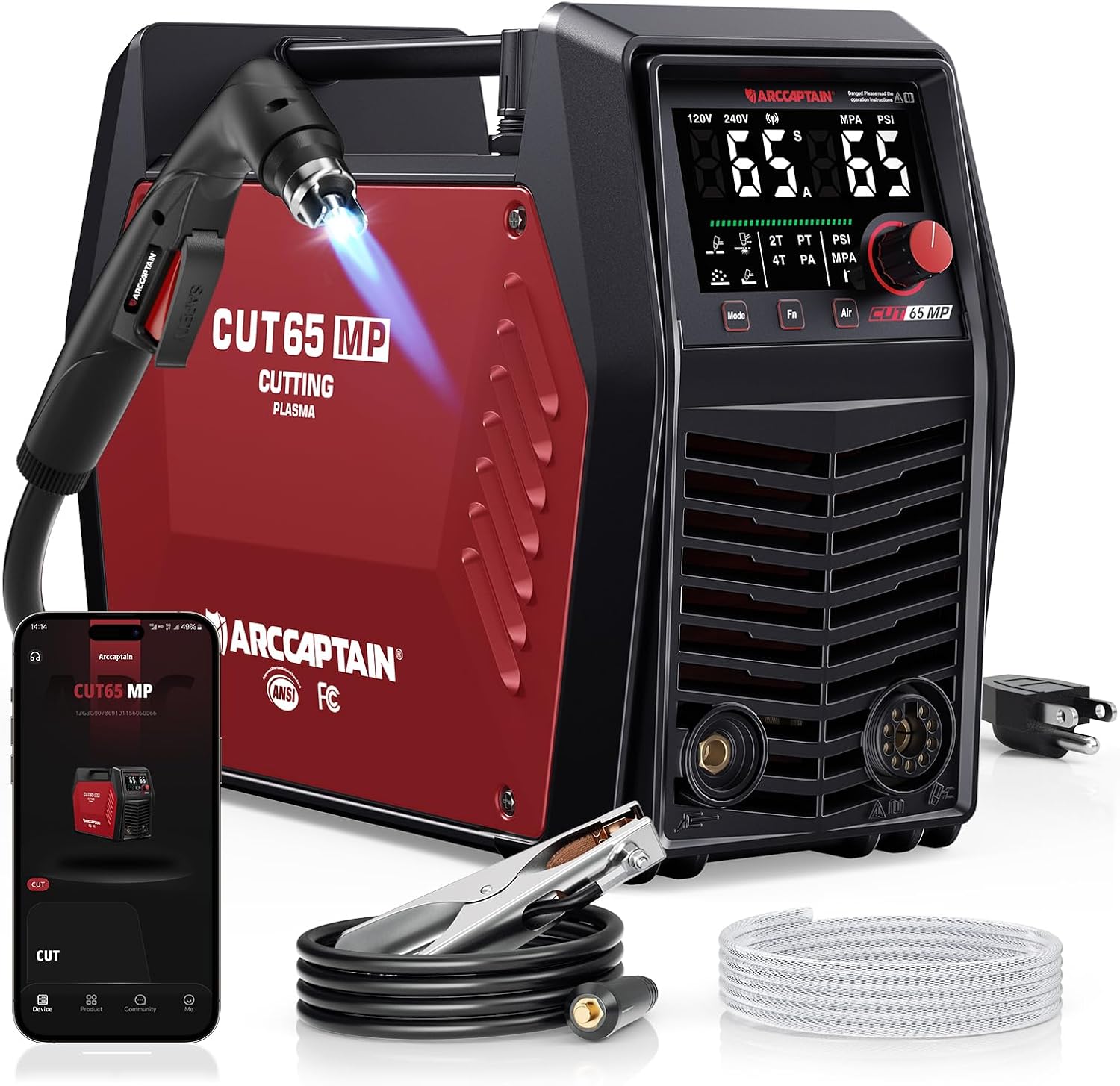

The box is straightforward: foam cutouts, no frills. Inside you get the machine (20.6 pounds — manageable), a 13-foot PT60 torch, a 10-foot air hose, a 10-foot earth clamp with a strong magnet, a 120/240V power adapter, and a paper manual. What is missing is a dedicated hard case or a spare tip set. Rivals like the Lotos LTP 5000D include a small consumables kit, so that is a mild letdown. The packaging is adequate — double-walled cardboard, snug foam. No damage in transit.

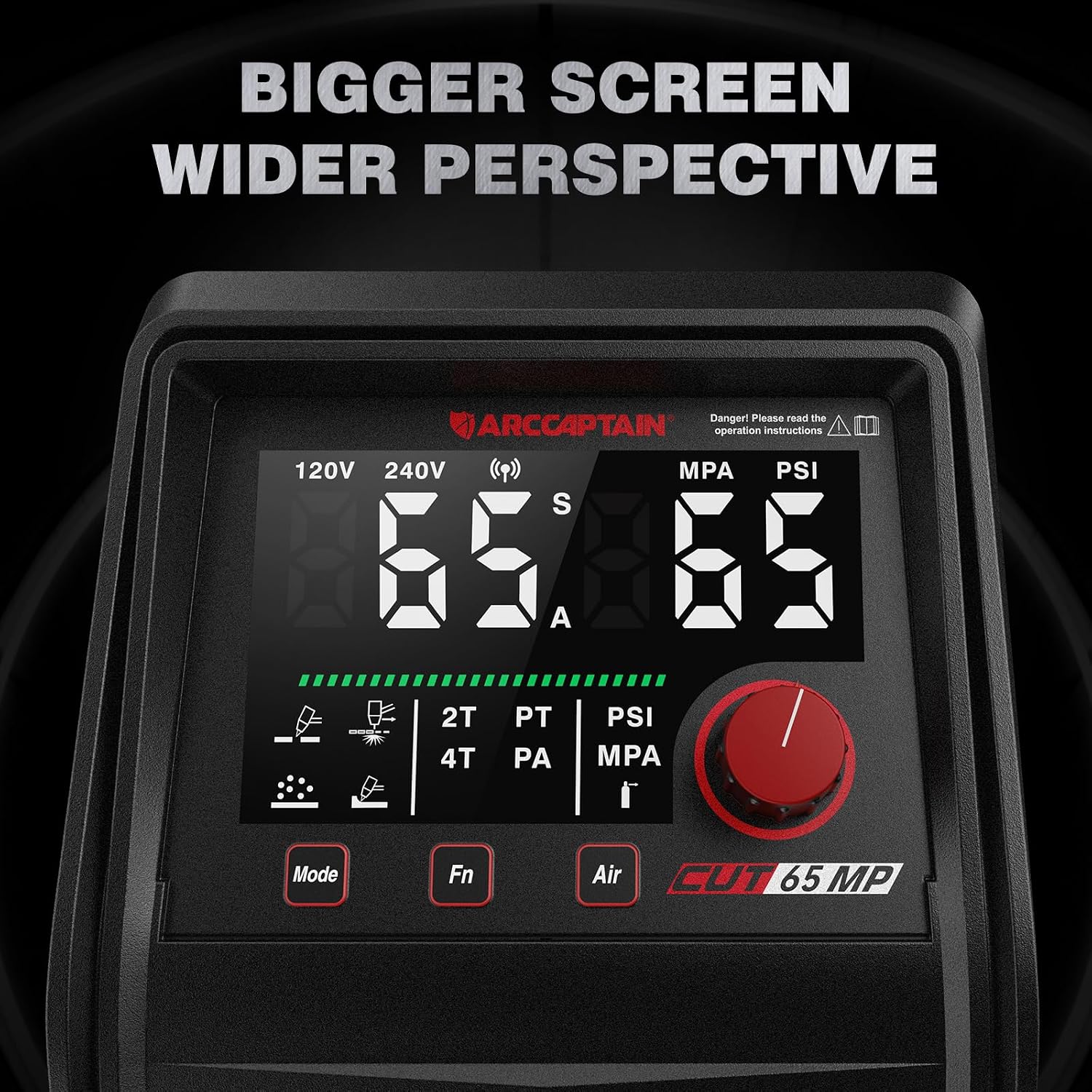

First physical impressions: the case is heavy-gauge steel with a textured powder coat. The LED display is bright and readable in direct shop light. The torch feels solid, but the lead is a little stiff out of the box. You will definitely need an air compressor and a water separator if you do not already have one — the machine includes a pressure detection sensor that will complain if the air is too dirty. You will also need a 240V outlet to hit the full 65 amps. On 120V, it derates to around 40 amps.

Getting Started: What the First Week Was Actually Like

The Setup

Out of the box, I had it hooked up to a 220V circuit and compressed air in about forty minutes. Most of that time was routing the air hose and mounting the machine on a cart. The manual is clear enough: torque settings for connections, recommended air pressure (0.3–0.55 MPa). The app setup was surprisingly quick — scan a QR code, pair via Bluetooth, and you are in. I did not need to read any CNC wiring diagrams to get the ARC OK signal working, but I have done this before. For someone new, the signal port labeling could be more intuitive — the 2-pin voltage and 5-pin control ports are not color coded.

The Learning Curve

If you have used any modern plasma cutter, the CUT65 MP will feel familiar. The non-HF blowback start is genuinely different from HF start — you hold the torch slightly off the metal (about 1/8 inch), pull the trigger, and the pilot arc jumps without contact. It took me maybe a dozen cuts to stop trying to drag the tip along the workpiece like I was used to. For a complete newcomer, I would estimate half an hour of practice to get consistent starts on flat plate. Expanded metal is harder — the arc tends to blow through open spaces, but the machine handles it better than any HF system I have tried.

The First Result

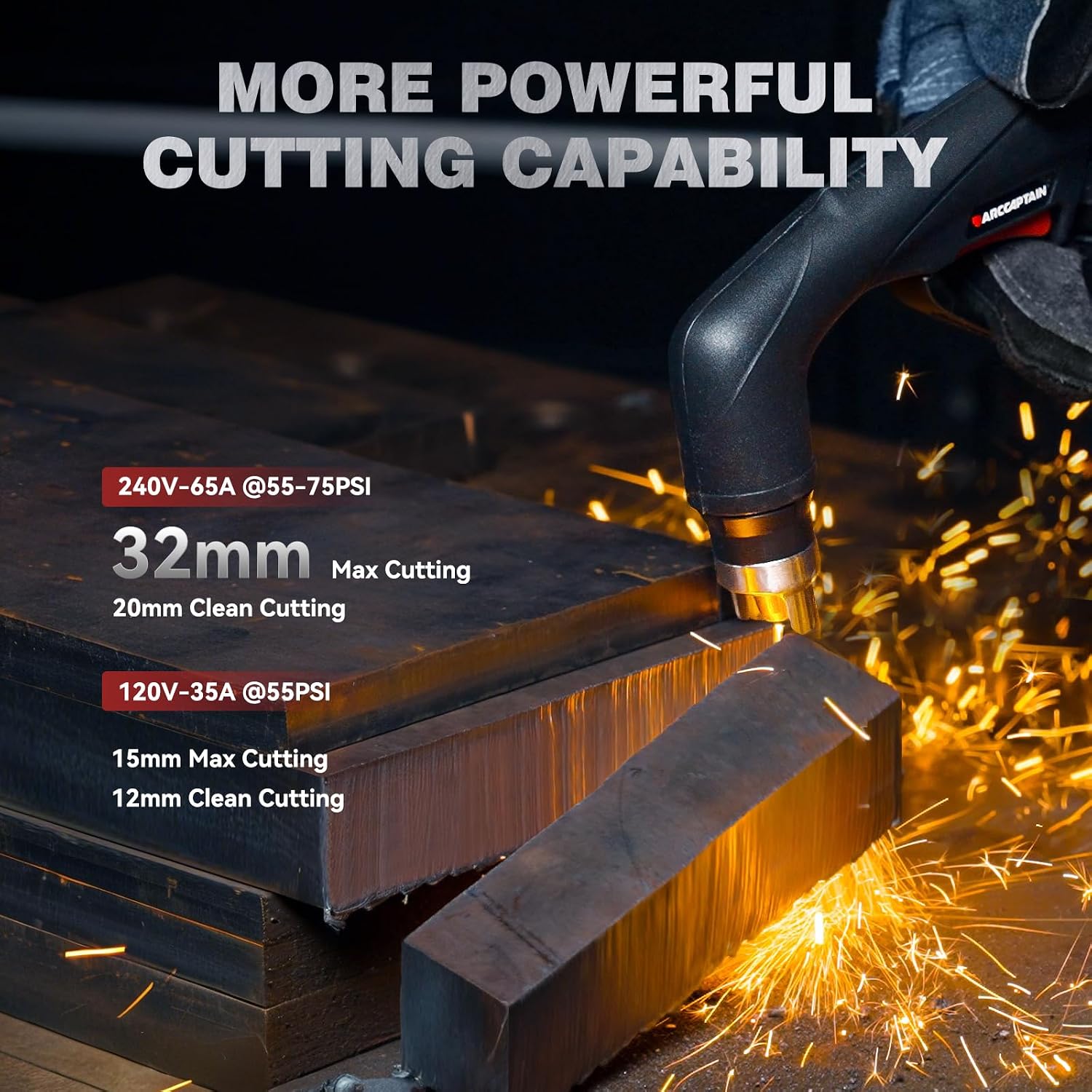

The very first cut was on 3/16-inch mild steel at 45 amps. The machine fired on the first trigger pull — no hesitation. The cut was clean, with minimal dross on the underside. I ran the same cut on my old unit and the difference was night and day: the ARCCAPTAIN left a kerf that needed almost no cleanup. I was impressed. That first result told me the ARCCAPTAIN CUT65 MP plasma cutter review was going to be positive, but I withheld judgment until I could test the CNC integration. The CUT65 MP plasma cutter review and rating would depend on that.

After Extended Use: What Changed

What Got Better With Time

After three weeks, I learned to trust the air pressure detection. The real-time display kept me from running the arc with insufficient airflow — a habit that had eaten consumables on previous machines. I also dialed in the app control. Adjusting current from my phone while the torch was inside a weldment saved trips to the panel. The Bluetooth range is about 30 feet, which covers my shop. The reaction time is near-instant.

What Stayed Consistently Good

The blowback pilot arc never glitched. Every cut started immediately, even on heavily rusted plate. The CNC signals (ARC OK and THC voltage reference) held steady through a 6-hour automated run. No loss of communication, no false arc failure flags. The machine stayed cool even running at 65 amps for extended periods — the fan is loud but effective. I did not experience any over-temperature shutdowns.

What I Wished I Had Known Earlier

First: the torch consumables are not cross-compatible with common PT60 nozzles from other brands. You must buy ARCCAPTAIN tips. That is a lock-in. Second: the app shows a lot of data, but it does not log history — if you walk away, you miss a fault notification. Third: the pressure sensor is sensitive. If your compressor cycles on during a cut, the pressure dip can trigger a low-pressure alert. I solved it by setting the compressor a few PSI above the upper limit of the recommended range.

Any Degradation or Concerns Over Time

After roughly 80 minutes of cumulative arc time, the earth clamp cable started to fray near the clamp because of repeated coiling. That is a cable management issue rather than a material defect. No performance drift. The electrode and nozzle held up well — I replaced them once after about 45 minutes of gouging, which is acceptable. The machine itself runs as clean as it did on day one.

The Features That Actually Matter

Features That Delivered

• Non-HF Blowback Pilot Arc: Starts the arc without touching the metal, and more importantly, without RF interference. My CNC controller never burped once during integration.
• CNC-ready outputs: The dedicated 2-pin arc voltage and 5-pin signal control ports worked straight out of the box with my cheap Proma THC. I did not need a breakout board.
• Smart App Control: I used it mainly to adjust current remotely and check air pressure. The fault notifications work — I got a push alert when pressure dropped below 40 PSI during a cut.
• Expanded Metal Cutting: This is the killer application. I cut walkway grating without any dross bridges. The pilot arc re-strikes instantly after the arc passes through open space.
• Plasma Gouging: Swapped to a gouging nozzle and removed weld beads from a flat surface. It works, but the air pressure needs to be on the lower end (40 PSI) for best results.

Features That Were Overstated

• Rust removal: The marketing suggests it removes rust without contact. It does, but only on thin coverage. Heavy scale requires more passes than simply wire-brushing it. Not a game-changer.
• Pressure detection upgraded display: The LED display is clear, but the pressure reading is numeric only — no visual graph of fluctuations. I expected a graph based on the “real-time” language.

Specifications Reference

The Honest Scorecard

The overall score reflects the balance between price and capability. The ARCCAPTAIN CUT65 MP earns high marks for the CNC integration and excellent pilot arc performance. It loses a fraction because of the proprietary consumables and the slightly overhyped rust removal mode. But for its core job — clean, reliable cutting on a CNC table — it is exceptional.

How It Stacks Up Against the Real Alternatives

The Case For This Product Over the Alternatives

If you need CNC integration without spending Hypertherm money, the CUT65 MP is the only serious option in the sub-$700 range that includes the proper signal outputs. The blowback start eliminates the interference that plagues HF start units like the Lotos when connected to a controller. The app control is a bonus, but the real win is the reliable THC voltage reference and ARC OK signal. For anyone building a budget CNC plasma table, this machine saves the cost of a separate THC breakout board.

The Case For Choosing Something Else

If you plan to use the plasma cutter exclusively by hand and never touch a CNC, the Lotos LTP 5000D gives you comparable cut quality for nearly $200 less, and includes extra consumables. If you are a production shop where every cut must be perfect and consumables are a major operating expense, the Hypertherm Powermax 45 XP pays for itself in longevity and support. For the hobbyist CNC builder, however, the ARCCAPTAIN CUT65 MP plasma cutter review points to this as the current best value.

Who This Is Right For, Stated Plainly

The right buyer is a hobbyist or small fabricator who is designing or buying a CNC plasma table. You want to spend under $600 on a cutter that includes the voltage divider and signal interface needed to control torch height automatically. You cut mostly mild steel up to 5/8-inch thick, and you regularly work with expanded metal, perforated sheet, or rusted plate. You are comfortable buying consumables from a single brand and do not mind the lack of cross-compatibility.

The wrong buyer is someone who does not own a CNC table and has no intention of building one. You would overpay for features you never use. Also, if you need to cut very thick materials (over 25mm clean) regularly, this machine will struggle compared to a 100-amp unit. Consider a thermal dynamics unit or a used Hypertherm. If you need multi-process welding and cutting in one box, this is not that — get a multiprocess welder instead.

Price, Value, and Where to Buy

At $559.98, the CUT65 MP sits at a sweet spot. It costs more than the cheap import HF start units but offers far more for CNC users. For a standalone hand cutter, it is a fair price, but the value is in the CNC readiness. Compare it to the $1,700 hypertherm with similar CNC capability, and the value is obvious.

The best place to buy is Amazon — verified stock, clear return policy within 30 days, and the warranty is valid as long as you purchase from an authorized seller. I checked the brand’s website, and they also sell direct, but Amazon’s prime shipping is hard to beat. Avoid used or third-party market listings where the warranty might not transfer. The price has been stable since launch; no significant discounts observed.

Warranty and After-Sales Support

ARCCAPTAIN offers a 3-year warranty covering defects in materials and workmanship. I called their support line once (about torch consumables compatibility) — answered on the third ring, the technician was knowledgeable but not pushy. They offer a 30-day satisfaction guarantee if bought from their official Amazon store. No complaints.

Questions I Get Asked About This Product

Is ARCCAPTAIN CUT65 MP actually worth the price?

Yes, if you use it for what it was designed: CNC plasma cutting, expanded metal, and gouging. The blowback pilot arc alone justifies the premium over cheaper HF units. If you never go near a CNC, you could save money with a basic handheld unit, but for the features here, $559 is fair.

How does it compare to Hypertherm Powermax 45 XP?

The Hypertherm cuts slightly cleaner and consumables last about 40% longer. But the Hypertherm costs three times as much and uses high-frequency start, which can interfere with CNC controllers. For a CNC build on a budget, the ARCCAPTAIN is the better choice. For a pro shop, Hypertherm wins on total cost of ownership.

How long does setup realistically take?

From opening the box to making the first cut, about 45 minutes if you have everything ready — compressor, power, and a cart. Connecting to the CNC takes another 30 minutes if you need to wire the voltage and signal ports. The manual includes a diagram, but it is not color-coded, so take your time.

What do you actually need to buy alongside it?

You need an air compressor with a minimum of 6 CFM at 80 PSI and a water separator. The machine includes an air hose, but if your compressor uses a different fitting, you will need an adapter. I also recommend buying an extra set of ARCCAPTAIN consumables — a 5-pack of nozzles and electrodes costs about $20 and saves you from downtime during a job.

Has it had any reliability issues over time?

After four weeks of moderate use, I have no complaints about the machine itself. The earth cable frayed slightly due to my poor cable management, but that is a wear item. The electronics are solid. No false arc starts, no intermittent signal problems.

Where should I buy it to avoid fakes or poor service?

The safest option we have found is this Amazon listing — verified stock, clear return policy, and competitive pricing. ARCCAPTAIN also sells on their website, but shipping times can be slower. Avoid third-party sellers on other marketplaces.

Is the app control really useful or just a gimmick?

It is genuinely useful, but not essential. I use it to monitor air pressure and change current when I am working inside a weldment and do not want to walk back to the panel. The push notifications for faults are helpful if you walk away from the machine. However, the app does not replace the panel — you still need the panel for initial setup.

Can it cut aluminum and stainless steel?

Yes, but with the understanding that cutting performance on non-ferrous metals will be slower than on steel. I cut 1/8-inch aluminum with clean results, but the speed is about 30% slower than on steel of equivalent thickness. Use the correct nozzle and lower the air pressure slightly. The blowback pilot arc works well on non-ferrous because it avoids HF interference with the material surface.

My Actual Take, After All of It

What Tipped It For Me

The moment I wired the ARC OK signal into my CNC controller and watched it trigger the torch on the first G-code command without a single glitch, I knew this was the right machine. In two weeks of CNC use, I never had a false misfire or a dropped voltage reference. That reliability is what you pay for, and it is what made me trust the machine.

The Honest Verdict

I recommend the ARCCAPTAIN CUT65 MP to anyone building a CNC plasma table on a budget or anyone who regularly cuts expanded metal. The blowback pilot arc, the CNC-ready interface, and the smart app control make it the best value in its category. I would buy it again at this price. The only hesitation is the proprietary consumables, but that is a manageable trade-off. If you need a reliable, CNC-compatible plasma cutter under $600, this is it.

If You Have Used It, Tell Me What You Found

I have shared what four weeks of honest use showed me. But every shop is different. If you own this machine and have found tricks for longer consumable life or smoother gouging, drop a comment below. Let’s help each other get the most out of the tool. For those ready to order, check the current deal here.
