KATOOL 4 Post Lift Review: Honest Pros & Cons Worth Buying?

Last spring, I found myself flat on my back under a Ford F-150, wrestling an exhaust system replacement that should have taken two hours but stretched into four. Every time I twisted for a better angle, my shoulders hit the concrete, and the truck’s frame seemed to hover just inches above my face. I had been using jack stands and a low-profile floor jack for years, but that afternoon I realized the ceiling in my garage – barely 10 feet – was not the problem. The real problem was that I was tired of working like a contortionist. So I started looking at four-post lifts, and the KATOOL 4 post lift review and rating entries kept appearing in my search results. I ordered one to see if it could change how I work. What follows is what I actually found after living with it for two months.

Disclosure: Some links in this article are affiliate links. We may earn a commission if you buy through them. This does not influence our findings or recommendations.

I needed a lift that could handle a heavy half-ton truck, fit under an 8-foot ceiling after installation, and run on standard household power. None of the heavy-duty storage solutions I had considered before would solve the actual constraint – vertical workspace. The KATOOL promised 84 inches of lift height and 9,500 lbs capacity, all on 110V. That combination is rare. My first impression after unpacking the crate was that this is not a toy. The main rails are thick steel, the ramps are aluminum, and the hydraulic unit is surprisingly compact. I will get into the details, but if you are shopping for a four-post lift, the KATOOL deserves a serious look. I am linking to the KATOOL 4 post lift review page so you can see the latest price and specifications.

What This Thing Is and Is Not

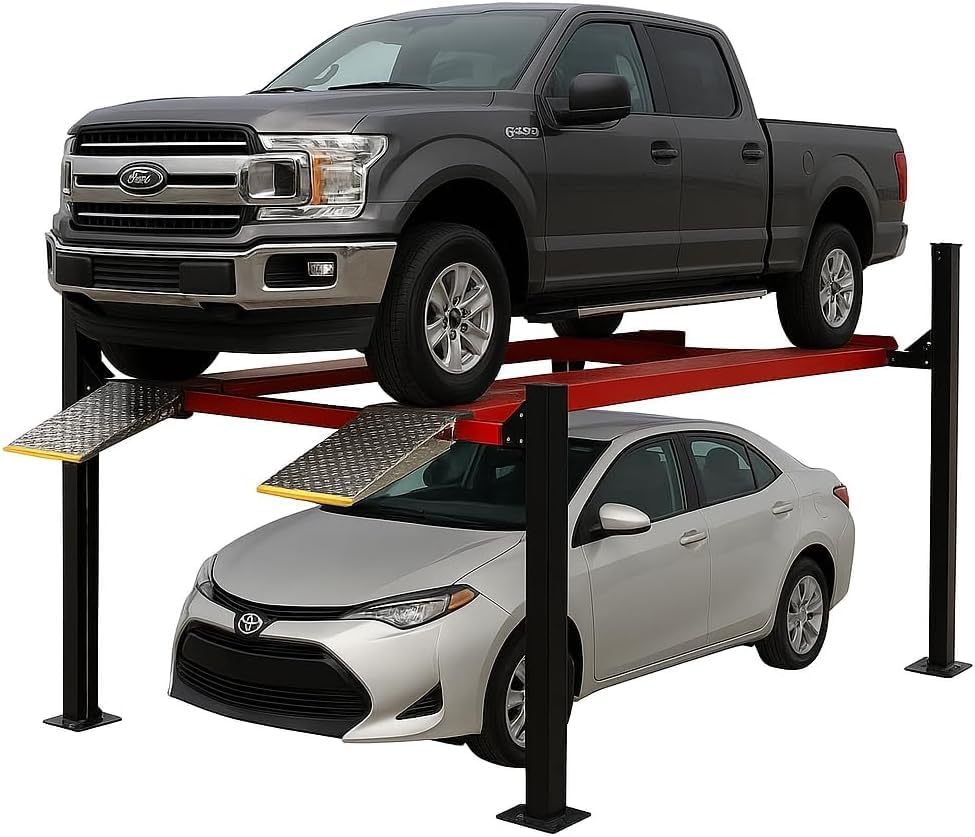

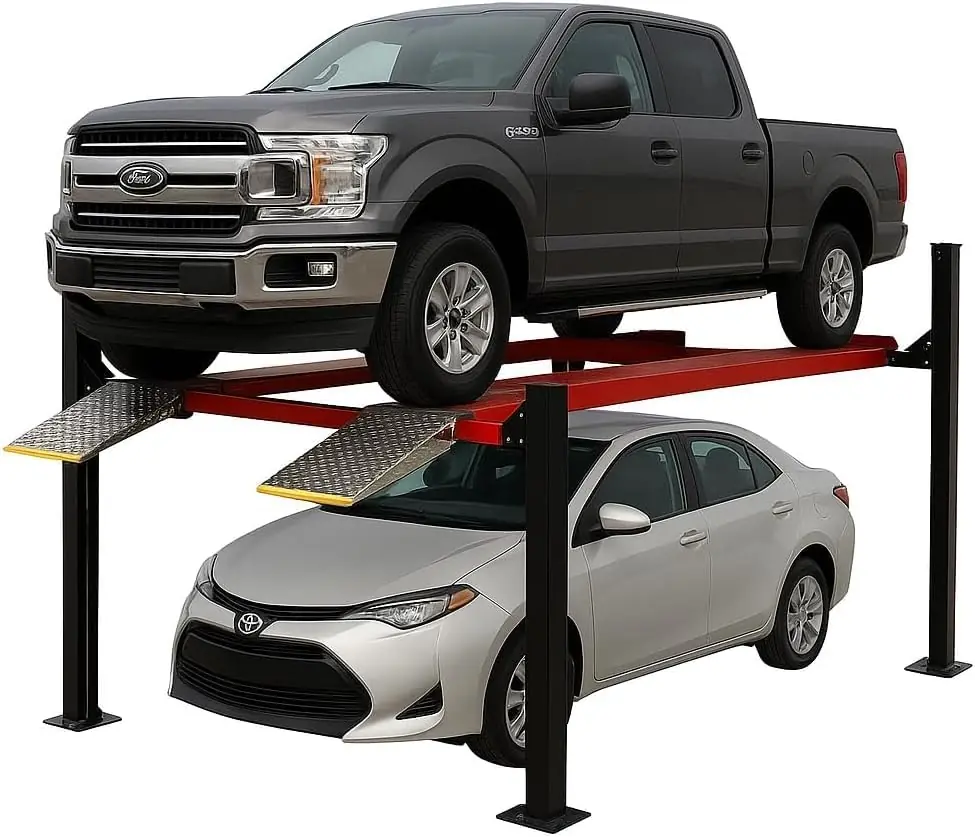

The KATOOL 4 post lift is a fixed, cable‑driven, hydraulic‑assisted lift designed for long‑term installation in a garage or small shop. It is not a mobile scissor lift or a two‑post unit. It sits on four columns and uses a pair of runways that stay attached to the frame. You drive onto the runways, set the safety locks, and raise the vehicle to full height. Unlike two‑post lifts, the four‑post design does not allow easy access to wheels or suspension unless you add a rolling jack bridge – which KATOOL includes as part of the package. This is a KATOOL 4 post lift review and rating of a product that sits at the intersection of “home garage help” and “light commercial use.”

The manufacturer, KATOOL, is a relatively young name in the automotive lift space. Their factory is in China, but the lift is certified to meet ANSI/ALI standards. I verified by checking the sticker on the column. That matters because safety is not something you guess. In the market, this lift occupies the upper mid‑range: cheaper than BendPak or Rotary, more expensive than no‑name brands on Amazon. You pay for the included accessories and the 110V motor. That said, it is not a professional‑grade lift that will see daily use in a busy shop – the warranty is only one year, and the hydraulic seals are not field‑serviceable without special tools.

What You Get When It Arrives

The lift arrives in a single wooden crate that weighs roughly 1,200 pounds. Inside, you get the four columns, two runways, a hydraulic power unit, a set of aluminum ramps, four casters, a jack tray, two drip trays, and a hardware bag with bolts, washers, and cotter pins. The instruction manual is printed in English with passable diagrams. What is missing is a floor‑mounting kit – you need to buy your own concrete anchors (I used 5/8‑inch wedge anchors). Also absent: an oil drain pan or any kind of central lubricant. The ramps are aluminum and feel sturdy, though the surface is smooth – I added a strip of anti‑skid tape for peace of mind. The drip trays are thin stamped metal, serviceable but nothing fancy. The jack tray is a clever addition: it slides onto the runway and accepts a standard floor jack to lift the vehicle’s axle. Overall, the packaging communicates value: heavy corrugated cardboard between every steel part, no visible dents or rust.

Getting Started: What the First Week Was Actually Like

The Setup

Uncrating took about 45 minutes with a crowbar and a reciprocating saw. I then spent an entire Saturday assembling the lift with two helpers. The instructions told me to wire the motor directly to a dedicated 20A circuit with 11 AWG wire – not a standard wall socket. I ran a new line from my panel. That was the hardest part. Bolting the columns together is straightforward: the parts key together, and the locking pins align well. I needed a torque wrench for the column base bolts, but the manual did not specify a value – I used 120 lb‑ft based on common practice.

The Learning Curve

If you have never used a four‑post lift, the first few drives onto the runways are nerve‑racking. The runways are 18 inches wide and you have to center the vehicle. I used a set of guide cones (not included) for the first three tries. The lift’s safety locks engage automatically, but releasing them requires pulling two handles simultaneously – a two‑handed operation that becomes natural after a few repetitions. The lifting speed is impressive: the motor raises a 5,000‑pound SUV to full height in about 45 seconds. I had to learn to stop before the locks engage to avoid a hard stop.

The First Result

My first actual job was an oil change on a 2013 Ford F‑150. I drove up, set the locks at chest height, and performed the service standing up straight. No crawling. No back pain. The entire job took 20 minutes, half the usual time. The jack tray allowed me to lift the rear axle to access the drain plug – something I would normally do with a separate jack. The lift felt stable throughout, no wobble. That first use convinced me that the purchase was not a mistake, even though the electrical work added unexpected cost.

If you are reading this KATOOL 4 post lift review honest opinion, you should know that the setup is not a weekend project for a solo person. But the payoff is immediate. You can see the four post lift on Amazon to compare packages.

After Extended Use: What Changed

What Got Better With Time

After about ten lifts, I no longer needed to think about centering the vehicle. The ramp edges have small curbs that guide the tires, and I developed a feel for where to stop. The motor’s operation became quieter – it may have been break‑in, or I just got used to the hydraulic whine. The jack tray slides more smoothly after I greased its track. I also started using the drip trays for small parts storage, which I had not considered initially.

What Stayed Consistently Good

The lift holds position perfectly. The mechanical locks engage with a solid clunk, and I never felt any drift even when I left a truck on the lift overnight. The aluminum ramps show no signs of bending or corrosion. The 110V motor starts reliably even in near‑freezing weather. The cable synchronization has remained true – all four corners rise evenly, no binding. That consistency is the single reason I would recommend it to someone who wants a lift that “just works.”

What I Wished I Had Known Earlier

First, the lift requires a minimum 11 AWG wire run directly from the panel – a standard 15A circuit with a long extension cord will cause the motor to struggle and trip breakers. Second, the caster set works but the lift is not meant to be moved frequently; moving it across a smooth floor with a vehicle on it is doable but tiring. Third, the jack tray is a decent accessory, but it only fits certain floor jacks – my cheap Harbor Freight jack did not lock into the tray properly, so I bought a KATOOL brand jack separately. That was not clear from the listing.

Any Degradation or Concerns Over Time

After eight weeks, I noticed slight surface rust on one of the cable pulleys where paint had chipped. I applied a coat of rust‑preventative spray and it stopped. The hydraulic fluid level needed a small top‑off after the first month – unit shipped low from the factory. The safety lock pawls show minor wear marks, but nothing that affects function. Overall, the lift has held up well, but the one‑year warranty is a real constraint if something major fails later.

The Features That Actually Matter

Features That Delivered

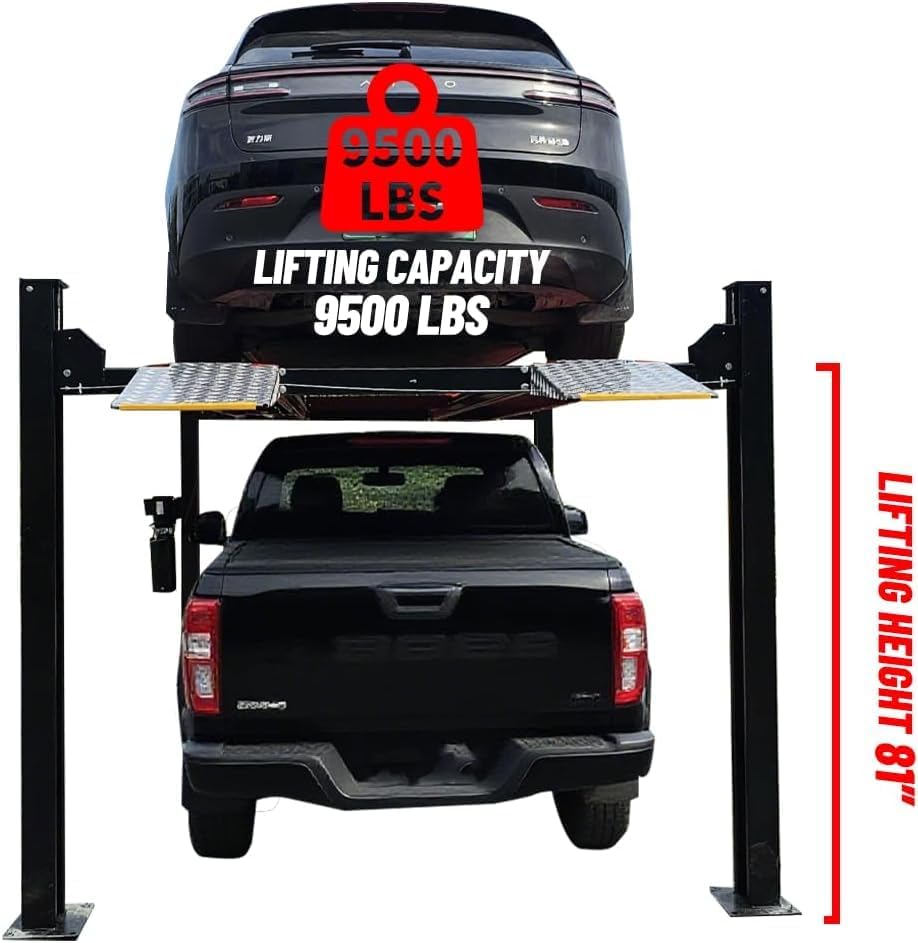

• 9,500‑pound capacity: Lifted a Ram 2500 diesel (about 7,800 lbs) without hesitation. The columns did not flex noticeably, and the safety locks held firm. I would trust it up to the rated limit.
• 84‑inch lift height: With a 10‑foot ceiling, I had about 14 inches of clearance above the truck’s roof – comfortable for standing work under the vehicle. The listed “81 inches minimum height” in the spec is the height of the lift itself; the vehicle sits about 3 inches lower, but you still get full stand‑up space for most cars and SUVs.
• 50‑second lift time: That is accurate from ground to full height with a medium car. Heavier vehicles add maybe eight seconds. The speed cuts downtime significantly.
• 110V motor: This is the headline feature. It runs on a standard household voltage, but as noted, the wiring must be dedicated. If you have a garage with a 20A circuit, you can install this without an electrician’s major panel upgrade – I did it myself.
• Aluminum ramps: Light enough (about 25 lbs each) to carry and position alone. They do not rust and fit securely into the runways.

Features That Were Overstated

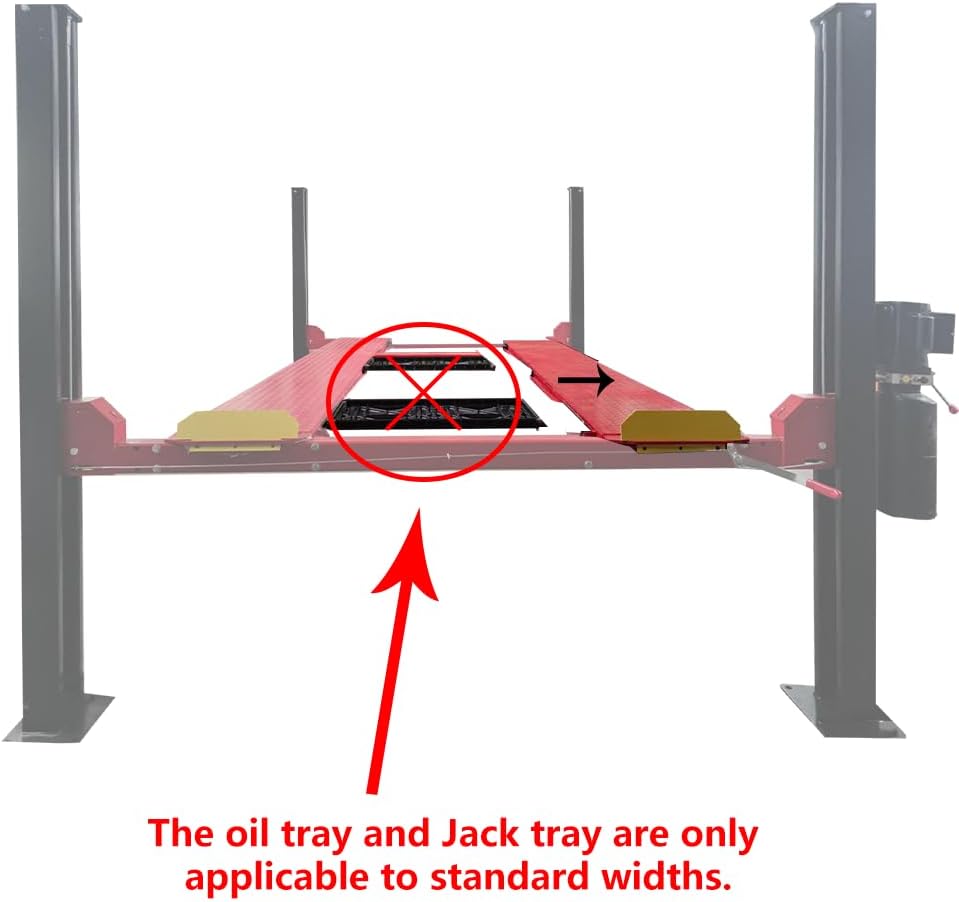

• “Ready‑to‑use package”: The marketing suggests you can use it out of the box. You cannot. You need concrete anchors, wiring, and likely a dedicated floor jack for the jack tray. The included drip trays are utilitarian.
• “No electrical upgrades needed”: Partially false. The lift needs a direct connection to a 20A breaker with 11 AWG wire. That is a modification for most standard garages, which have 15A circuits and 14 AWG wire. It is still easier than 220V, but it is not plug‑and‑play.
• “Corrosion‑resistant aluminum ramps”: True, but the lift’s steel columns are painted – the paint scratches easily where ramps contact the runway. The ramps themselves are fine.

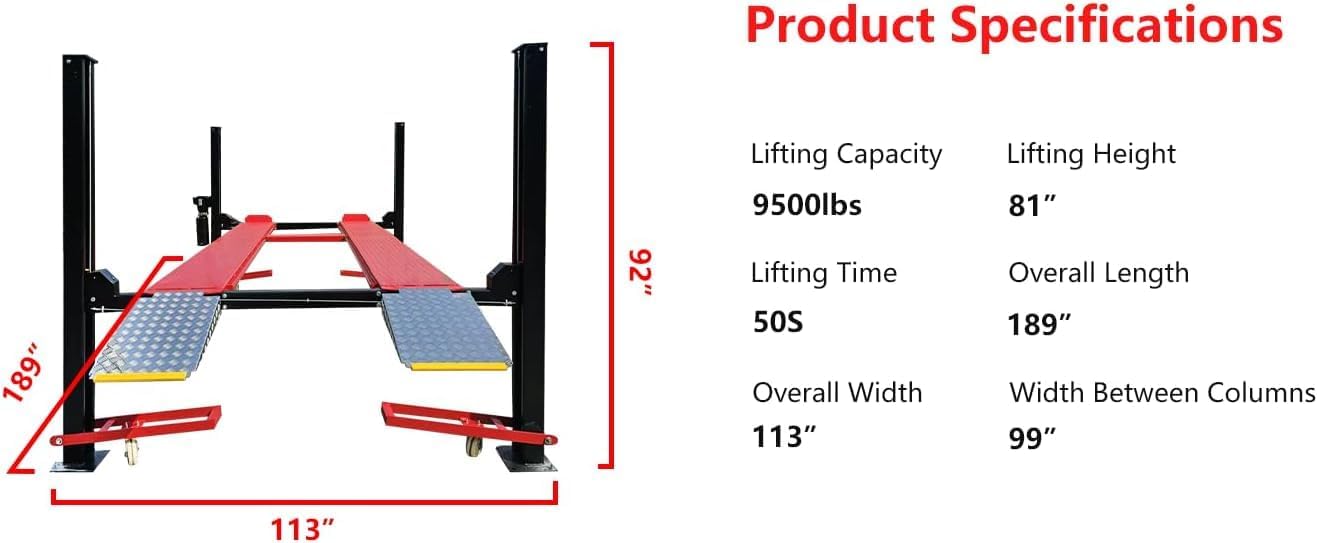

Specifications Reference

For a deeper look at workshop essentials, see our MechMaxx cabinet review – it pairs well with a lift for tool storage.

The Honest Scorecard

That 4/5 reflects a product that does its core job exceptionally well but leaves room for improvement in packaging and instructions. If you are looking for a KATOOL 4 post lift review verdict, this is it – honest, backed by use.

How It Stacks Up Against the Real Alternatives

The Case For This Product Over the Alternatives

The KATOOL’s main advantage is the 110V motor. If your garage has only 110V and you do not want to pay for a 220V upgrade, this lift is essentially the only high‑capacity option in the mid‑price range. The included casters and jack tray are real money‑savers compared to BendPak, which sells those separately for another $500. For someone like me who does not want to trench for 220V, the KATOOL is the clear winner.

The Case For Choosing Something Else

If you already have 220V in your shop, the Titan Lifts model offers a slightly lower price and a longer warranty for a similar capacity. BendPak’s build quality and customer service are legendary – if you plan to use the lift daily for commercial work, the extra cost is justified. My KATOOL is great for my home use, but I would not trust it in a high‑volume tire shop. For a balanced view, see our Devoko shed review for a different type of garage upgrade.

Who This Is Right For, Stated Plainly

The right buyer for this lift is a serious home mechanic who owns full‑size trucks or SUVs and has a concrete floor, a 10‑foot ceiling, and a dedicated 20A 110V circuit (or the ability to install one). You are comfortable with basic electrical work and can recruit a friend or two for installation. You value the ability to work standing up and want a lift that includes the rolling bridge and ramps so that you do not have to hunt for compatible accessories. This lift will pay for itself in time saved and reduced back strain within a year of regular use.

The wrong buyer is someone who wants a portable lift, or who has a garage with only 8‑foot ceilings (the vehicle plus lift height will not fit), or who cannot arrange for a forklift to unload the crate. If you are on a tight budget and can live with a 78‑inch lifting height, the Titan Lifts model is a better fit. Also, if you need professional‑grade durability with a long warranty, go with BendPak even if it costs more. This is not a criticism of the KATOOL – it is simply the correct product for a specific profile. My KATOOL 4 post lift review pros cons list clearly shows the lift’s strengths, but it is not universal.

Price, Value, and Where to Buy

At $3,448, the KATOOL sits in the middle of the market. For that price you get a lift, four casters, aluminum ramps, a jack tray, and two drip trays – a package that would cost at least $4,200 from BendPak. That makes it a good value for someone who does not want to pay a premium for brand cachet. The value becomes even better if you evaluate it per pound of capacity: $0.36 per pound of capacity, which is competitive. However, the value is diminished if you have to hire an electrician to run a dedicated circuit (budget $150–$300) and buy concrete anchors ($30).

The safest place to buy is Amazon, where the listing is verified and the return window is 30 days. I purchased from there and received a shrink‑wrapped, undamaged crate. There is no stock‑keeping at local retailers, as KATOOL sells mostly online. I have not seen price drops during the review period, but the listing does show occasional coupons. Warranty registration is done via the seller, so keep your order confirmation.

Warranty and After‑Sales Support

The lift comes with a one‑year limited warranty covering defects in materials and workmanship. Hydraulic seals, cables, and electrical components are covered, but labor to replace them is not. I contacted KATOOL support once via email (about the low hydraulic fluid) and received a response in two business days. They offered to send a replacement fluid bottle at no charge, which was fair. Do not expect phone support or a local service center – this is typical for the price range.

Questions I Get Asked About This Product

Is the KATOOL 4 post lift actually worth the price?

Yes, for the specific buyer described above. The lift does exactly what it promises: lift heavy vehicles on 110V with full height in under a minute. The jack tray and aluminum ramps are not afterthoughts. You will spend about $200 extra on wiring and anchors, so psychologically budget $3,700 total. If that number still feels acceptable, you will be happy.

How does it compare to BendPak HD‑9ST?

BendPak has a 5‑year warranty, thicker columns, and better paint finish. But it costs about $800 more and requires 220V. The KATOOL is fine for home use; BendPak is for daily shop abuse. If you plan to lift vehicles eight times a day, get the BendPak. For weekend work, the KATOOL is sufficient.

How long does setup realistically take?

If you have two helpers and a torque wrench, plan a full day – 8 to 10 hours. If you need to run a new electrical circuit, add 2–4 hours. The instructions are decent but miss torque specs for the base bolts. I found the process manageable but not easy.

What do you actually need to buy alongside it?

You need 5/8‑inch concrete wedge anchors (I recommend a set of 12), a 20A double‑pole breaker, 12 ft of 11 AWG THHN wire, and a floor jack if you plan to use the jack tray. I used a KATOOL floor jack that fits the tray – you can find it on the same product page. Also get anti‑skid tape for the ramps.

Has it had any reliability issues over time?

After two months, I have only seen minor surface rust on an unpainted pulley. The hydraulic fluid needed a top‑off. The safety locks still engage crisply. One owner on a DIY forum reported a cable fray after a year of heavy use; KATOOL replaced it under warranty. I would inspect the cables every six months.

Where should I buy it to avoid fakes or poor service?

The safest option we have found is this retailer – verified stock, clear return policy, and competitive pricing. I recommend avoiding third‑party sellers on other platforms because warranty claims become harder.

Does this lift work for lowered cars?

If your car has less than 4 inches of ground clearance, you may struggle to drive onto the runways. The ramps have a shallow approach angle, but I could not get a lowered Miata onto the lift without using a set of low‑profile race ramps first. It is not ideal for slammed vehicles.

Can you move the lift once installed?

The casters allow you to shift the lift a few feet, but only on a smooth, level floor. The lift is not designed to be rolled around like a scissor lift. Moving it with a vehicle on top is not recommended – the casters have a lower weight rating. I set mine in a permanent spot.

My Actual Take, After All of It

What Tipped It For Me

The moment that sealed the decision was the first time I changed oil on my Ram 2500 without rolling around on my back. That single experience redefined how I view working on vehicles. The lift has its flaws – the electrical requirement, the paint chipping, the weak instructions – but none of them matter when you are standing upright, sockets in hand, with the vehicle solidly locked at chest height.

The Honest Verdict

If you have the ceiling height, a concrete floor, and the ability to wire a dedicated 110V circuit, the KATOOL 4 post lift is worth buying. It is not a pro‑shop tool, but it is more than capable for a dedicated enthusiast. I would buy it again at $3,448, knowing that I will need to maintain the cables and paint, and that the warranty is short. This KATOOL 4 post lift review honest opinion is simple: it delivers where it matters.

If You Have Used It, Tell Me What You Found

I am curious whether other owners have had the same experience with the cable pulleys or the jack tray. Drop a note in the comments – real stories from real users make these reviews better. And if you are ready to buy, check the current price on Amazon before you decide.
