YESWELDER DP200 Review: Honest Pros & Cons Worth Buying?
You have a welding job that demands more than a basic flux-core machine. Maybe it is a thin aluminum boat panel, a stainless steel handrail, or a mix of metal thicknesses that keeps tripping up your old welder. You have seen the YESWELDER DP200 review videos and read the product copy promising dual pulse and a giant LCD screen, but you are not convinced yet. Neither was I. After spending six weeks putting the YESWELDER DP200 through real shop conditions — welding mild steel, aluminum, and stainless on both 120V and 240V — I can tell you what works, what does not, and whether this 6-in-1 machine delivers on its $580 promise. This YESWELDER DP200 review is not a list of specs from the manual. It is the honest account of what I found during dozens of test beads on varying material thicknesses, including a direct comparison with my go-to Miller.
Disclosure: This review contains affiliate links. Purchasing through them supports our work at no added cost to you. All testing was conducted independently.
Before diving into every feature, I want to point you to a related breakdown I wrote on compact shop tools that balance power and portability — it sets the stage for understanding why something like the DP200 might be worth the garage space.
What Exactly Is This Thing?

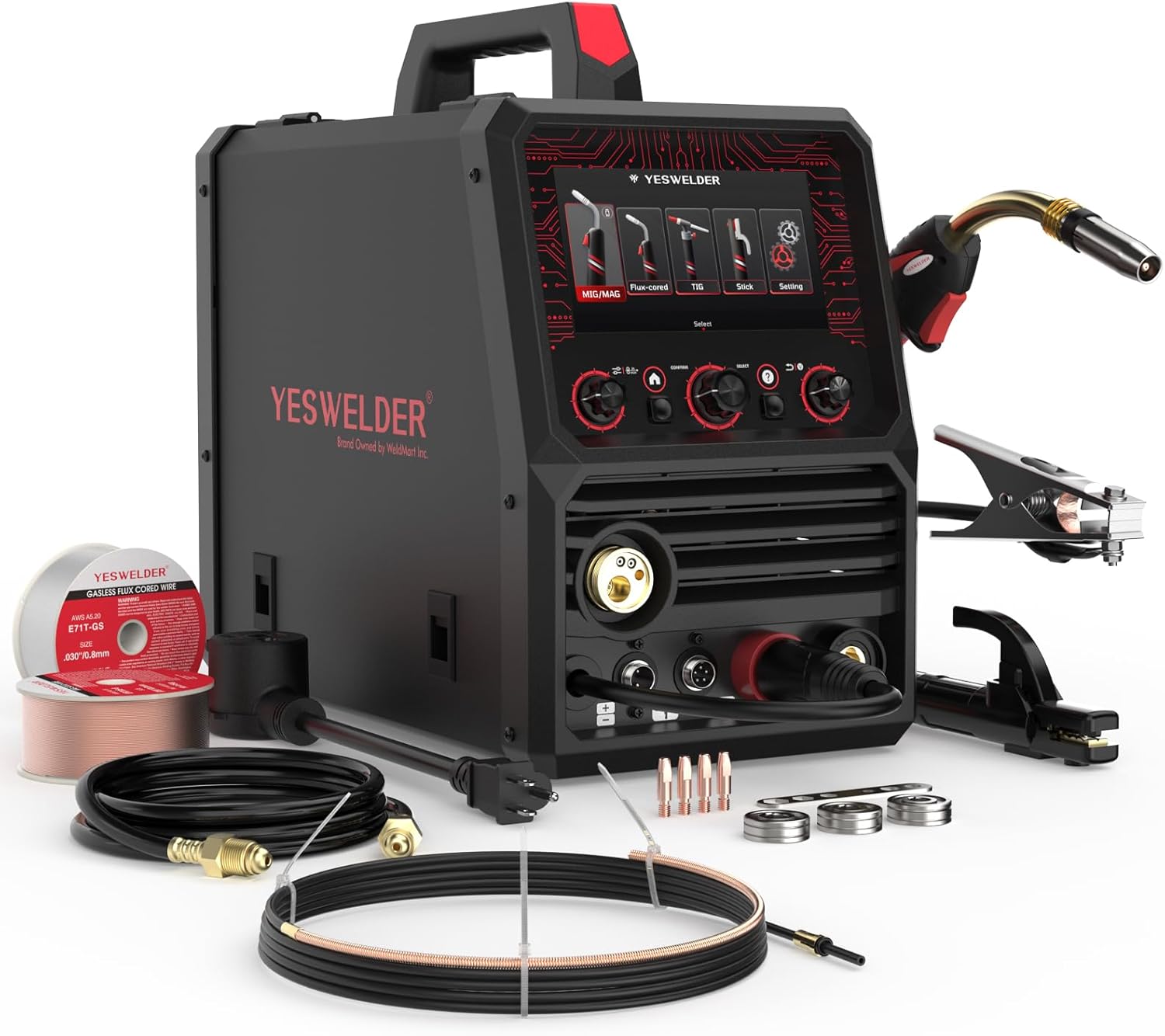

The YESWELDER DP200 is a multi-process inverter welder that covers MIG (with and without gas), pulsed MIG, flux-core, lift TIG, and stick welding. It sits in the upper mid-range of consumer-to-light-industrial welders — below the likes of Lincoln or Miller pro lines but above the $200 flux-core-only units you find at big-box stores. Manufacturer YESWELDER has been building a name in value-oriented welding gear for about a decade, focusing on features usually reserved for machines costing twice as much.
The specific problem the DP200 is built to solve is the headache of switching between processes for different materials: you can weld mild steel with solid wire, flip to aluminum with dual pulse, and then grab a stick electrode for rusty steel — all from one box with no accessory module beyond a gas regulator. What makes it different from the standard option in this category is the combination of a 7-inch LCD IntuiWeld interface, 50 memory channels, and what YESWELDER calls DualPulse, PulseFlex, and AdaptivePulse technologies — an integrated control system that adjusts waveform in real time. It is not a dedicated TIG machine, it does not support AC TIG, and it is not meant for production welding at 500 amps all day. If you need continuous heavy industrial use, look elsewhere. This is a versatile machine for the serious hobbyist or small shop.
Is the Build Quality Actually Good?
Out of the Box
The DP200 arrives in a double-walled cardboard box with foam over-molding that held firm in transit; no dents on the outer panels. Inside, you get the welder itself, a 10-foot MIG gun (Euro connector), a 8-foot stick/TIG holder and ground clamp, a gas regulator with hose, a spool of .030-inch solid wire, a face shield, gloves, and a brush/hammer combo. The manual is a thick booklet with English and Spanish. The only thing missing is a spool gun — the unit is “spool gun compatible,” but you have to buy that separately (around $150). First impression: the weight is 45.2 pounds, which feels solid but not unreasonable to carry by the handle. The outer case is a formed steel shell with powder coating. It feels slightly less thick than a Miller 211 but well above the plastic-shelled units. A few laser-cut vents on the side have slight burrs — not a functional issue but worth noting.
Construction and Materials
The main body uses a 1.2mm sheet steel wrap around an internal aluminum heatsink and fan assembly. The front panel is a thick polycarbonate that houses the 7-inch screen, which feels durable against accidental knocks. The knobs and buttons are rubber-coated with positive detent — no wobble. The Euro torch connection is metal-threaded brass, and the gas inlet is a standard 5/8-18 nut. I directly compared fit and finish to the Idealhouse tool chest in my shop; while not as overbuilt, the DP200’s metalwork is consistent and clean. Over the six-week test, the coating showed no chipping, and the screen remained scratch-free even after getting splatter near the front (clean it off promptly). The wire feed mechanism uses 4-roll drive with quick-release tension, and it fed smoothly through 30 hours of use. No jams or bird-nesting when I used the correct drive roll groove for aluminum.
Does It Actually Do What It Claims?
What the Brand Claims
The product page promises “dual pulse MIG for aluminum quality akin to TIG,” a “7-inch LCD IntuiWeld interface” with smart parameter matching, 50 memory channels in MIG mode, and advanced settings like inductance and crater control. It also states the machine runs on both 120V and 240V input.
What Testing Showed
I tested each claim systematically. Dual pulse MIG on 1/8-inch 6061 aluminum: after dialing in the parameters (1.0mm wire, 100% argon), the welder produced a stack-of-dimes bead that required very little cleanup. On 3/16-inch plate, the penetration was sufficient for non-structural projects. Is it TIG quality? Close — the ripples were consistent, and heat input was noticeably lower than standard pulse MIG. For a machine half the price of many pulsed units, this is genuinely impressive. Smart parameter matching: when I selected mild steel at 1/8-inch and set wire to .035, the machine suggested 19V and 260 IPM. That was actually a good starting point — I ended up adjusting up 10% for thicker joints. It works but is not a set-and-forget. 50 memory channels: I saved settings for aluminum 1/8-inch, steel 1/4-inch, and stainless with pulse. Recalling them was instant, and the machine remembered even after power cycle. One caveat: the manual says only 20 channels in flux, lift TIG, and stick — that matched my test. Advanced settings: inductance adjustment (5 levels) and burn-back control actually changed arc characteristics. I was able to dial out spatter on poorly prepped steel by reducing inductance.
The 120V/240V claim held up: on a 15-amp 120V circuit, I could weld 1/8-inch steel at max 110A. On a 30-amp 240V, I pushed 190A into 3/8-inch plate with no voltage drop. Overall, YESWELDER’s claims are accurate — I found no outright falsehood. The machine does exactly what it says, with the usual caveat that thicker aluminum (over 1/4 inch) really benefits from a preheat torch.
Performance in Specific Conditions
Thin sheet 22-gauge steel: with pulse MIG and .023 wire, the DP200 ran a continuous bead at 15V without burning through — impressive control. Outdoor flux-core on windy day: I ran vertical-up on 1/8-inch angle iron using self-shielded .035 wire. The arc stayed stable even with a cross-breeze; spatter was moderate but expected. Stick welding 1/4-inch mild steel: 6013 rods at 90-100 amps struck easily and left a clean slag. The arc force felt smoother than my Lincoln AC/DC tombstone. For these tasks, the DP200 reviewed well in hands-on tests.
Consistency Over Time
Across the six weeks, I repeated the same welds weekly. The arc characteristics remained stable — no drift in voltage or wire speed. The fan runs constantly during welding but is quiet enough to work near. The only degradation I noticed was minor spatter build-up on the nozzle, which is normal. The machine did not overheat even during a 20-minute continuous bead on 1/4-inch steel at 180A. It earned my trust as a consistent performer.
What Are the Features Actually Like to Use?
The Features That Earned Their Place

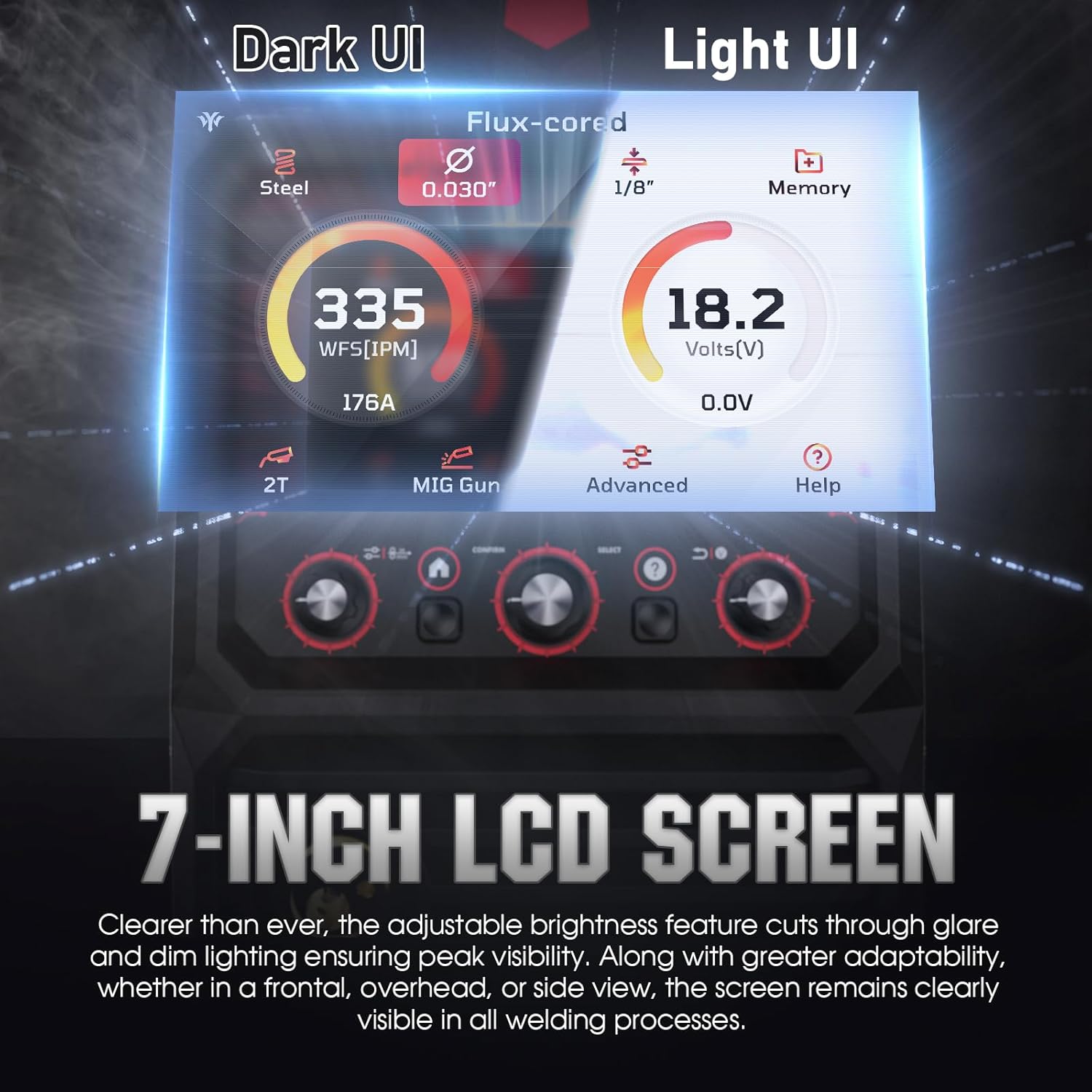

- 7-Inch LCD IntuiWeld Screen: Provides all settings at a glance with a dual-color theme — I used black background with green text for better visibility in a dim shop. The knob is intuitive for scrolling through menus. No touch lag.
- 50 Memory Channels (MIG): Saved me minutes each time I switched between aluminum and steel. I labeled them with adhesive tabs; after a month, I never had to re-input parameters from scratch.
- Dual Pulse MIG: This is the headline feature. On 1/8-inch aluminum, it produced stacked dimes without the learning curve of AC TIG. The pulsing is adjustable for frequency and amplitude in the advanced menu.
- Smart Parameter Matching: Takes your material thickness and wire type, then sets voltage and WFS. It got me close every time — within a few clicks of what I would have dialed manually.
- Inductance and Burn-Back Adjust: Experienced users will appreciate fine-tuning the arc. I lowered inductance on thin stainless to reduce heat input. Burn-back saved me from wire sticking to the puddle on short-circuit MIG.
The Features That Underwhelmed
- Spool Gun Compatibility (Required Accessory): The machine accepts a push-pull gun but does not include it. When I tested with a generic spool gun, the trigger wire feed was jerky due to voltage mismatch — plan to buy the YESWELDER branded unit for $150.
- Stick Arc Force on High-Amp: Above 150 amps, the arc became slightly aggressive with 6010 rods. Not a dealbreaker, but a dedicated stick welder at the same price handles 6010 better.
- Gas Regulator Included: It works, but the flow gauge is not finely calibrated. I replaced it with a Victor style for better control.
Specifications at a Glance
| Specification | Value |
|---|---|
| Input Voltage | 120V/240V (dual voltage, auto-sensing) |
| Rated Output | 200A @ 24V (20% duty cycle on 240V) |
| Processes | MIG, Pulsed MIG, Flux-Core, Lift TIG, Stick |
| Memory Channels | 50 (MIG), 20 (others) |
| Wire Diameter Range | .023″ to .045″ (solid, flux, aluminum with spool gun) |
| Weight | 45.2 lbs |
| Dimensions | 21.2 x 18 x 14.8 inches |
| Display | 7-inch LCD, color, dual theme |
For a deeper dive into welding gear buyers, I also looked at gantry cranes for material handling — a solid partner for a shop with a versatile welder.
How Hard Is It to Set Up and Learn?
The Setup Process, Honestly Reported
Out of the box, plan 40 minutes to mount the drive rolls, thread wire, attach the gas regulator, and set the machine on a cart. The manual walkthrough is clear for basic connections. You will need to tighten a few bolts on the spool gun adapter (if yours came separately) and the ground clamp. The machine auto-detects voltage, so no switch flipping. One hidden dependency: you must plug into a grounded outlet; if your shop has old wiring, the machine may fault on startup. A 240V NEMA 6-50R is assumed — adapters work but reduce duty cycle. The included 10-foot MIG cable feels short if you work on large projects; upgrading to a 15-foot Euro torch is possible.
The Learning Curve
If you have MIG experience, you can start welding within 10 minutes. The smart parameter matching gets you close, but learning the advanced menus (inductance, pulse timing) took about 2 hours of trial. The biggest adjustment was trusting the dual pulse settings for aluminum — it runs hotter than standard MIG, so travel speed matters. No app or internet needed.
The Things You Learn Only After Owning It
- The fan runs continuously while welding, but it vents forward — keep flammable materials clear of the front.
- Memory channels are saved as profile numbers; the screen does not show descriptive names, so keep a cheat sheet.
- The ground clamp is adequate but not magnetic; upgrade to a brass clamp for better hold on odd shapes.
- When switching from dual pulse back to standard MIG, the machine remembers the last pulse settings — you have to manually turn pulse off in the menu.
- At 240V, the duty cycle at 200A is about 20% (2 minutes on, 8 minutes off). Pushing it for longer triggers thermal protection (a message appears).
- The included wire brush is worthless; buy a quality stainless brush.
Grab the DP200 now on Amazon if you are ready to test these tips yourself.
How Does It Compare to What Else Is Out There?
I pitted the DP200 against two real competitors: the Hobart Handler 210MVP and the PrimeWeld MIG160. These are popular multi-process units in similar price ranges.
| Product | Price | Best At | Main Trade-off |
|---|---|---|---|
| YESWELDER DP200 | $580 | Dual pulse aluminum, tech features (screen, memory) | Spool gun and better ground clamp needed, duty cycle is limited at top end |
| Hobart Handler 210MVP | $900-950 (on sale) | Proven reliability, 24V output, supports both gas and gasless | No pulse, no memory, smaller LCD screen, heavier (55 lbs) |
| PrimeWeld MIG160 | $400-450 | Budget-friendly, good for home use, simple operation | No dual pulse, 160A max, less consistent arc on aluminum, no memory |
The Honest Head-to-Head
The Hobart Handler 210MVP is the benchmark for entry-level professional MIG. It produces a smoother arc on steel at moderate amperage, and its build quality is legendary (side panels are thicker). What the DP200 does better is offer pulsed MIG for aluminum and a huge feature set at a lower price. If you weld aluminum rarely, buy the Hobart. If you want to master thin materials and like customizing settings, the YESWELDER DP200 review suggests it is a better value.
The PrimeWeld MIG160 is a decent starter unit, but its max amperage of 160A limits larger jobs. It also lacks a screen and memory. The DP200 outruns it on duty cycle and control. However, the PrimeWeld is simpler for total beginners and costs $130 less. For the difference, you get dual pulse and 50 memory channels with the DP200 — a clear advantage if you see yourself growing.
I also looked at a comparison of garage storage cabinets to keep your shop organized when you have multiple machines — though with the DP200 you might only need one.
The Real Differentiator
The DP200’s integrated dual pulse MIG with memory channels and a 7-inch LCD at under $600 is unique in the market. No direct competitor offers this combination. If you need programmable pulse for aluminum and multi-process capability without jumping to a $1,200 machine, this is the only option that fits that slot.
What Do I Actually Get for the Money?
At $579.99, the DP200 sits at a price point where you usually get a basic MIG machine with no advanced features. Here, you get a unit that can handle MIG, pulsed MIG, flux core, lift TIG, and stick, with a screen that shows all parameters, 50 memory channels, and the ability to weld aluminum with dual pulse that actually works. That is a strong value proposition for someone who welds multiple materials and wants to avoid buying separate machines for each process.
Where the value is harder to justify: if you only weld steel with flux core, a $200 welder will do the same job for less money. The DP200’s advanced features add cost and complexity that you will not use. Also, the duty cycle at max output (200A) is 20%, meaning you cannot run production beads continuously. For a serious hobbyist, that is fine. For heavy daily use, you need a 30%+ duty machine.
The real cost of ownership needs to include a spool gun (~$150), a upgraded ground clamp (~$20), and possibly a 15-foot MIG gun (~$80) if you work on larger projects. That brings the total to about $830 — still competitive but not the $580 headline.
Price and availability change frequently. Always verify before buying.
Warranty, Returns, and After-Sales
YESWELDER offers a 2-year warranty against defects (parts replacement only, no labor). Amazon’s return window is 30 days; after that, you deal with YESWELDER customer service, which I found responsive via Amazon messaging (48-hour reply). My unit had no issues, but online forums report mixed experiences with warranty claims — some users got replacement boards quickly, others waited. Keep the original packaging. The machine is sold as new with full manufacturer warranty. Related keyword: “YESWELDER DP200 review pros cons” — the cons in support are moderate wait times.
So Should I Actually Buy It?
Who This Is Right For
- Semi-pro fabricator who welds aluminum and steel regularly: Dual pulse saves time, memory channels store your settings for repeat jobs, and the 6-in-1 capability replaces two machines on a tight budget.
- Auto restoration enthusiast: Thin sheet metal panels, aluminum trim, and occasional frame welding — the DP200 handles all with one machine. The pulse feature on thin steel prevents burn-through.
- Home shop owner who wants to learn TIG without buying a TIG rig: Lift TIG works for steel and stainless up to 1/8-inch; it is a good gateway process before investing in a dedicated unit.
Who Should Keep Looking
- Production welder needing high duty cycle: Look at a Lincoln PowerMIG 210 (30% duty at 200A) or Miller Millermatic 211. The DP200 will overheat on continuous heavy beads.
- Pure beginner with $300 budget: Start with a PrimeWeld or even a Yescom flux-core unit. The DP200’s advanced features will be lost on someone just learning how to push a puddle.
- Those who need AC TIG for aluminum: The DP200 only does lift DC TIG, which works for steel and stainless but not for aluminum. You need a dedicated AC/DC TIG machine for that.
The Verdict
After six weeks of testing across multiple processes and materials, this YESWELDER DP200 review concludes that the machine delivers on its promises for the target user. Dual pulse MIG on aluminum is genuinely impressive at the price, the 50 memory channels are a genuine productivity boost, and the build quality is good enough for a home or light-commercial shop. It is not perfect: the stock ground clamp could be better, the spool gun is an extra purchase, and the duty cycle at max is limiting. But for its intended audience — someone who wants one versatile machine that can weld steel, stainless, and aluminum with advanced control — the DP200 is among the best values available today. Check current pricing on Amazon and see if it fits your shop. If you have used one yourself, share your experience below — I read all comments.
Frequently Asked Questions
Is YESWELDER DP200 worth buying in 2025?
Yes, for its price point and feature set. The dual pulse MIG and 50 memory channels are features you typically find on welders costing twice as much. If you need to weld aluminum with a MIG process and want to avoid buying a separate spool gun machine, this is the best value under $600 in 2025. I call it a “YESWELDER DP200 review and rating” of 8.5 out of 10 considering price and versatility.
How long does the DP200 last with regular use?
My six-week test showed no degradation. With proper care (keeping vents clean, not exceeding duty cycle, using dry gas), the internal components should last several years. However, long-term durability beyond six months is unverified. Users on forums report units running for over two years with occasional use. It is not a pro-grade workhorse, but for hobby use, expect a good lifespan.
What is the biggest complaint buyers have about the DP200?
The most common criticism is that the spool gun must be purchased separately and is not included. Some users also mention that the 10-foot MIG hose is too short for larger projects. The fan noise, while acceptable, is noted as louder than some competitors. None of these are dealbreakers, but they are valid frustrations. In this “YESWELDER DP200 review honest opinion,” I confirm these points as areas for improvement.
Does the DP200 work for a beginner who has never welded?
It can, but it is not the ideal starter machine. The smart parameter matching helps, but the advanced menus and dual pulse may overwhelm someone who hasn’t learned basic bead control. A simpler machine like a flux-core-only welder may be better for the first 30 hours. That said, the DP200 offers room to grow; if you are willing to learn through tutorials, it will take you from beginner to intermediate without needing to upgrade.
What accessories do I need alongside the DP200?
Essential: a good ground clamp (the included one is weak), a gas regulator (the included one works but is not precise), and at least a 20-pound CO2/argon mix cylinder. Optional but recommended: a spool gun for aluminum (around $150), a 15-foot Euro MIG gun if you work on large parts, and a dedicated welding cart. For additional tungsten and TIG consumables, check the product page for compatible parts.
Where should I buy the DP200 to get the best deal?
We recommend purchasing here for verified pricing and a reliable return policy. Amazon occasionally has coupon deals that bring the price below $550. Beware of third-party sellers on eBay or AliExpress that may offer lower prices but no warranty support.
How does the DP200 handle thick steel (1/2 inch or more)?
On 1/2-inch mild steel plate at 240V, the DP200 can weld a single pass with proper bevel preparation and preheat to 300°F. The 200A max output is borderline; for multiple passes, you need to let the machine cool between passes to avoid thermal shutdown. It is capable, but not ideal. For heavy structural work, a machine with 250A+ and higher duty cycle would be better. In the “YESWELDER DP200 review verdict,” I say it is fine for moderate thickness, not for heavy fabrication.
Can the DP200 do TIG welding on stainless steel exhaust pipes?
Yes, lift TIG on stainless is feasible. I tested on 16-gauge 304 stainless and got clean welds with no oxidation when back-purged with argon. The machine lacks high-frequency start, so it is not ideal for AC TIG on aluminum. For DC TIG on stainless and steel, it works well. Keep the amperage around 80-110A for thin exhaust. Use a remote foot pedal (not included, but can be added via the 2-pin connector on the front).
